Air damper, which is designed specifi cally for use in low temperature conditions (down to minus 40°C), features design features that prevent heat loss through the damper blades.

It is made only of rectangular cross-section.

Range of connection dimensions of this damper is presented in accordance with the size range of air conditioners, including the GMK-P damper can also be made in a sectional design version. If additionally specifi ed in the order, the GMK-P damper can be manufactured in other combinations of width and height. The maximum height (H) of the singlesection damper is 2,410 mm, and the width (B) is 2,000 mm. Case length (L) 170 mm.

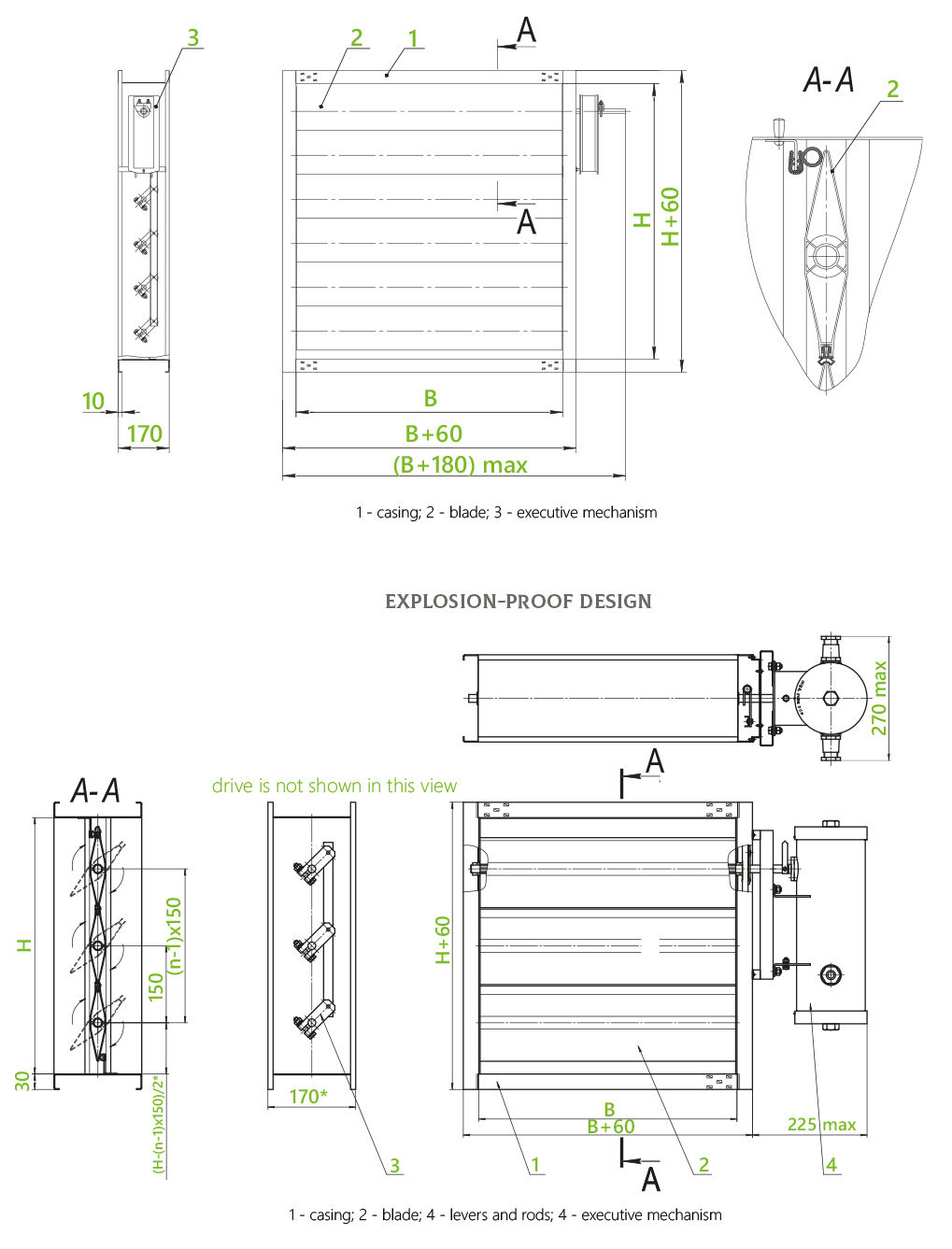

Design:
