rotary diffuser for suspended ceilings
DRX
Used in air conditioning, ventilation and heating systems, create a vortex air flow for good mixing with indoor air.
Used in rooms with high requirements for appearance and design.
Ddesigned for both supplying and removing air from the room.
Installed in a suspended ceiling, or suspended from a building structure.

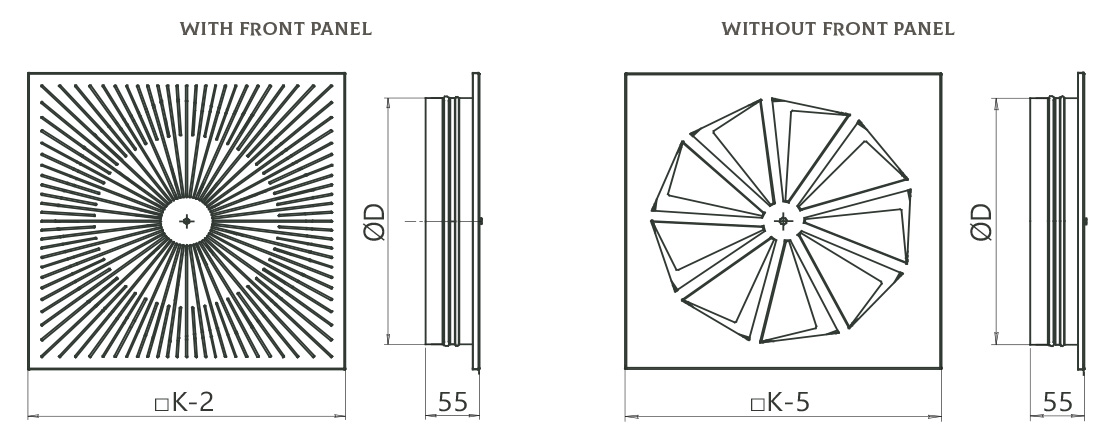

The DRX rotary diffuser for suspended ceilings structurally consists of a rotary diffuser and a square front panel (optional).
The nominal diameter of the diff user (standard size) should be selected from the standard range of diameters: 200 mm, 250 mm, 315 mm, 350 mm, 400 mm, 450 mm, 500 mm. Connection type to the air duct system: nipple with EPDM rubber seal.
The
diffuser blades are not adjustable. The blade bending angle is fixed and set at
the factory.
